Quality Assurance in Every Component
Our Exclusive Supply Chain Ensures the Exceptional Quality of Each E-Bike Component
Controllers
- FOC6
- FOC12
- FOC18
FOC6
The FOC6 model has compact dimensions and offers versatile power options. With a power capacity ranging from 250W to 300W, it ensures efficient current control within the range of 8-12A.
| Model | FOC6 | Voltage | 24V 36V 48V |
| Dimension | 7.7*4.7*2.9 | Power | 250W/300W |
| Control Mode | FOC | Current | 8-12A |
FOC12
The FOC12 controller functions as the central command center, skillfully regulating power delivery through its FOC control mode for seamless integration.
| Model | FOC12 | Voltage | 24V 36V 48V |
| Dimension | 8*4*1.8 | Power | 750W |
| Control Mode | FOC | Current | 23-27A |
FOC18
With a control mode of FOC and a robust current handling capability of 40A, the FOC18 ensures efficient power delivery and optimal control for dynamic and powerful electric biking. experience.
| Model | FOC18 | Voltage | 24V 36V 48V |
| Dimension | 12*4.5*2.7 | Power | 1000W |
| Control Mode | FOC | Current | 40A |
Motors
- R220
- R221
- R520
- R521
- R720
- R1020
- A320
- A520
- A720

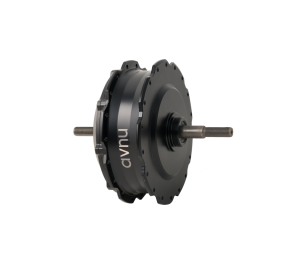

R220 Rear Motor
Ideal for 26/700C/28-inch wheels, the R220 motor combines efficiency with a compact and lightweight (2.8 kg) Silver/Black design.
Torque 45N.m
Speed 32km/hr
R221 Front Motor
The R221 motor, tailored for 26/700C/28-inch wheels, seamlessly blends a 36V nominal voltage with 500W of rated power for a versatile and reliable electric biking experience.
Torque 45N.m
Speed 32km/hr
R520 Rear Motor
The R520 motor, compatible with wheel sizes from 20 to 28 inches, offers versatility with a 36-60 voltage range, and 500W of rated power.
Torque 45N.m
Speed 32km/hr
R521 Rear Motor
The R521 motor stands out with its reliable and efficient performance, offering a balanced range of up to 60V nominal voltage and 500W rated power.
Torque 45N.m
Speed 32km/hr
R720 Rear Motor
The R720 motor provides dynamic performance. Its moderate weight (4.2 kg) makes it a robust and stylish choice for electric biking.
Torque 55N.m
Speed 35km/hr
R1020 Rear Motor
The R1020 motor, compatible with wheel sizes from 20 to 28 inches, delivers a high-powered solution with 1000W of rated power, a versatile 36-60V voltage range.
Torque 75N.m
Speed 40km/hr
A320 Rear Motor
A320 is a lightweight motor with a 20-inch wheel, weighing 2.5 kg, and operates on 24-48 volts with a 300W power rating, ideal for diverse applications.
Torque 40N.m
Speed 35km/hr
A520 Rear Motor
This motor, with a wheel size ranging from 16 to 29 inches, showcases a customizable black design. Delivering a maximum power of 500W and operating within a nominal voltage range of 24V-48V, it combines versatility and style for diverse applications.
Torque 65N.m
Speed 45km/hr
A720 Rear Motor
This motor boasts a 20″ wheel size and a customizable black appearance. With a powerful 750W rating and a flexible nominal voltage range of 24V-60V, it offers both style and performance.
Torque 85N.m
Speed 50km/hr
Display
- TC586
- TC640
DISPLAY- TC586
The TC586 display model provides essential features including cruise control and power display speed, catering to a comprehensive electric bike riding experience.
| Model | TC586 |
| Function | CAN protocol, 5 Speed PAS, Auto dormancy Light control, Walk assistance, USB charge, Control settings |
| Indications | Intelligent error codes display, Speed, Trip distance, Power |
| Dimension(mm) | 58(L) x 35(W) |
| Voltage | 24V 36V 48V |
DISPLAY- TC640
The TC640 TFT display offers intelligent error code displays and the flexibility to switch between kilometer and mile readings. It includes a pre-locking function, improved installation, and a built-in soft rubber pad to prevent falls during rides.
| Model | TC640 |
| Function | CAN protocol, 5 Speed PAS, Auto dormancy Light control, Walk assistance, USB charge, Control settings |
| Indications | Intelligent error codes display, Speed, Trip distance, Power |
| Dimensions(mm) | 115(L) x 65(W) |
| Voltage | 24V 36V 48V |
Sensors
- Cadence Sensor
- Torque Sensor
Cadence Sensor
The high precision cadence sensor, featuring a 4cm disk diameter, operates with a four-wire system output interface. Activation initiates at a pedal angle greater than 30°, and the sensor ceases output after 100ms when the pedal comes to a stop. Designed for versatility, it functions reliably within a temperature range spanning from -50℃ to 80℃.
Torque Sensor
The torque sensor, with JIS standard shaft technology, operates on 4.5~5.5V, generates 48 signals per rotation, and fits bottom brackets with widths of 68/73/84/100mm. Certified (CE/EN15194/REACH/RoHS), it’s waterproof and tested with an IP67 rating for durability.
Batteries
- VoltBlend 750W
- QuantumFlow 500W
36V 15Ah 750W Battery
Experience a perfect fusion of style and technology with our e-bike batteries. Utilizing AVNU technology, we seamlessly integrate the Battery Management System and controller into the pack, giving your e-bike an elegant regular bicycle look. This innovative approach ensures both a sleek appearance and top-notch performance for offroad adventures. The lightweight, compact design prioritizes portability without compromising on power.
36V 10Ah 500W Battery
The e-bikes excel with cutting-edge battery tech, surpassing the ordinary. Our commitment to exceptional performance is evident in the high-capacity design, providing an extended range for long-distance rides. Customization options allow tailoring to individual preferences, ensuring an exhilarating, limitless ride through city streets or off-road trails.
One-Stop-Shop
Service from AVNU
Customer
Random
Suppliers
Supplier A
CONTROLLER
Supplier B
DISPLAY
Supplier C
CUSTOMIZE
Supplier D
PAS SENSOR
- Confusing supply brands
- Time is out of control
- Product quality varies
- Late maintenance chaos
Customer
CONTROLLER
DISPLAY
CUSTOMIZE
PAS SENSOR
- Single-supplier consolidation
- Controlled timeliness
- Consistent quality
- Prompt repairs
Done quickly and efficiently!
Need Any Help?
Whether you want to have a tech chat or start a project, we’re here for you.
Development
When you embark on e-bike development, our seasoned AVNu team not only delivers top-notch e-bike drive system units but also offers expert technical consultation and recommendations for design and configuration. Supported by our prototyping assistance, our partners can swiftly bring their envisioned e-bikes to the market.
Manufacturing
Our specialized service team provides on-site assistance and training in software operation to manufacturers collaborating with our partners. This ensures the optimization of assembly efficiency and quality assurance. Regardless of the chosen system configurations for e-bikes, all electronic components will be easily identifiable and backed by future guarantees, facilitating comprehensive system management.
After-sales
The Digi-ecosystem platform backs all AVNU system-powered e-bikes, offering optimal management support. Leveraging this, our local service center in the USA delivers technical consultation and training to partners, addressing diverse post-service scenarios in the market. This ensures the prompt delivery of warranty and aftermarket parts.
Continuous R&D
In our commitment to enhancing user experience continually, AVNU system e-bikes will receive regular OTA software updates to stay current. Moreover, ongoing optimizations will further elevate their performance. Rest assured, we guarantee that each e-bike will consistently operate at its peak performance, no matter where it is in the world.
Specification
- CONTROLLER
- MOTOR
- DISPLAY
- SENSOR
- BATTERY
 FOC6 |
 FOC12 |
 FOC18 |
|
| Dimension | 7.7*4.7*2.9 | 8*4*1.8 | 12*4.5*2.7 |
| Control Mode | FOC | FOC | FOC |
| Voltage | 24V/36V/48V | 24V/36V/48V | 24V/36V/48V |
| Power | 250W/300W | 750W | 1000W |
| Current | 8-12A | 23-27A | 40A |
| Protocal | CAN, UART | CAN, UART | CAN, UART |
| Standards | EN15194, EN16949, UL | EN15194, EN16949, UL | EN15194, EN16949, UL |
| Water Proof | IP67 | IP67 | IP67 |
 R220 |
 R221 |
 R520 |
 R521 |
 R720 |
R1020 |
|
| Position | Rear motor | Rear motor | Rear motor | Rear motor | Rear motor | Rear motor |
| Size | ||||||
| A (mm) | 46 | 46 | 41.8 | 41.8 | 73 | 73 |
| B(mm) | 127 | 127 | 155 | 155 | 145 | 157 |
| C (mm) | 44 | 44 | / | / | 44 | 44 |
| D (mm) | 15.3 | 15.3 | 16.4 | 16.4 | 15.5 | 15.5 |
| E(mm) | 38 | 43 | 38 | 38 | 38 | 38 |
| OLD (mm) | 136 | 142 | 140 | 140 | 170 | 170 |
| Core Data | ||||||
| Wheel Size (Inch) | 26/700C/28 | 26/700C/28 | 20/26/700C/28 | 20/26/700C/28 | 20/26/700C/28 | 20/26/700C/28 |
| Nominal Voltage(Vdc) | 36 | 36 | 36-60 | 36-60 | 36-60 | 36-60 |
| Rated Power(W) | 250 | 250 | 500 | 500 | 750 | 1000 |
| Max Speed(km/h) | 25-32 | 25-32 | 25-32 | 25-32 | 25-35 | 25-40 |
| Max Torque (N.m) | 45 | 45 | 45 | 45 | 55 | 75 |
| Color | Silver/Black | Silver/Black | Silver/Black | Silver/Black | Silver/Black | Silver/Black |
| Weight(kg) | 2.8 | 2.9 | 3.6 | 3.6 | 4.2 | 4.8 |
| Mounting Parameters | ||||||
| Brake | Disc-Brake V-Brake | Disc-Brake V-Brake | Disc-Brake V-Brake | Disc-Brake V-Brake | Disc-Brake V-Brake | Disc-Brake V-Brake |
| Cabling Route | Shaft side_Right | Shaft side_Right | Shaft side_Right | Shaft side_Right | Shaft side_Right | Shaft side_Right |
| Spoke Specification | 36H*13G | 36H*13G | 36H*12G | 36H*12G | 36H*12G | 36H*12G |
| Tests & Certifications | IP56 ROHS/CE | IP56 ROHS/CE | IP56 ROHS/CE | IP56 ROHS/CE | IP56 ROHS/CE | IP56 ROHS/CE |
 TC586 |
 TC618 |
||
| Dimensions | |||
| Length(mm) | 58 | 115 | |
| Width(mm) | 35 | 65 | |
| Standard | CE | CE | |
| Display Type | TFT | TFT | |
| Nominal Voltage (Vdc) | 24/36/48 | 24/36/48 | |
| PAS Level | 5 | 5 | |
| Functions | |||
| Light Switch On/Off |  |
|
|
| Com.Protocol | Can | Can | |
| Light Control | |
|
|
| Walk Assistance | |
|
|
| USB Charge | |
|
|
| Settings | |
|
|
| Indications | |||
| Speed | |
|
|
| Trip Distance | |
|
|
| Capacity | |
|
|
| Error Code | |
|
|
| Power | |
|
|
| Language | English | English |
 Cadence Sensors |
Torque Sensors |
|
| Sensor Type | High precision cadence sensor | JIS standard shaft technology |
| Output Cessation Time | 100ms | 100ms |
| Durability | Designed for versatility | Waterproof with an IP67 rating |
| Signals per Rotation | Generates 48 signals per rotation | Generates 48 signals per rotation |
| Application | Applied for various spindle types, dual side signals | Applied for various spindle types, dual side signals |
| Notable Features | High precision, wide temperature range | JIS standard shaft technology, CE/EN15194/REACH/RoHS certified |
PowerFlow Pro |
PulseFlex Lite |
|
| Voltage | 36V | 36V |
| Capacity | 15Ah | 10Ah |
| Power Output | 750W | 500W |
| Integration Technology | Utilizes the latest AVNU technology | Utilizes the latest AVNU technology |
| Integration Features | Seamless integration of BMS and controller | High-capacity design for extended range |
| Design | Lightweight and compact form factor for portability | Delivers exceptional performance for long journeys |
Full Systems For Every E-Bike
e-Commute
e-City
e-MTB
e-Cargo
e-Off Road
Experience innovation on every ride as our meticulously designed components work in harmony, delivering both performance and sustainability. From advanced motor technologies to energy-efficient power management, our e-bike systems redefine the landscape of environmentally conscious cycling.
160+
Patents
200+
Staff
10+
Certificates
400+
Partners
